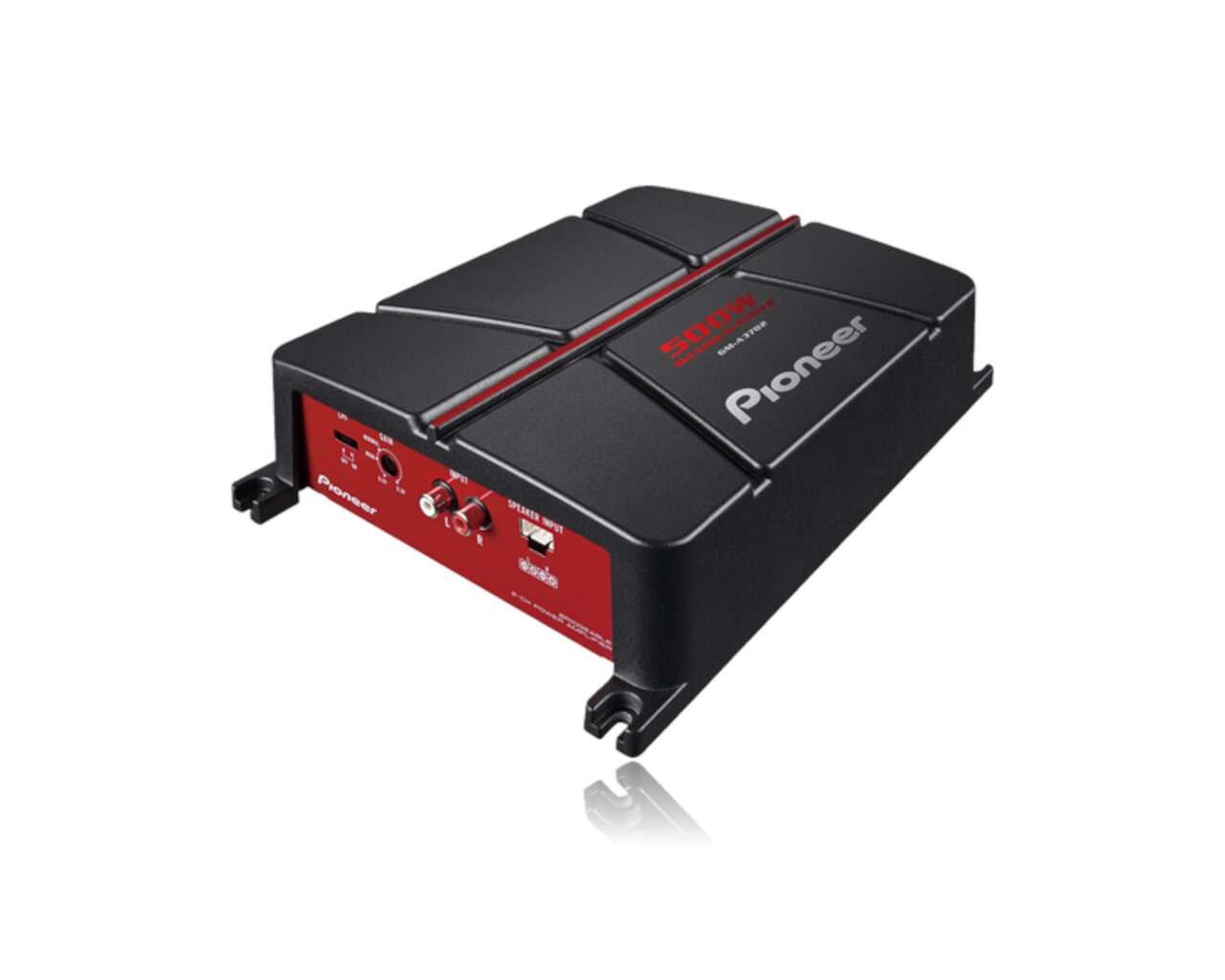

Pioneer GM-A3702
Plays loud and clear
Why put an amplifier in your car? Pioneer’s GM-A3702 2-channel amplifier will greatly improve the sound quality in your vehicle, so you’ll find yourself looking forward to your time on the road. This punchy little Pioneer will power a pair of speakers with 60 watts RMS each, which is a gigantic jump over the power supplied by your car radio alone. You’ll hear more of the little details in your music, especially when you turn your system up to overcome road noise.
Practical features
You can also put this versatile amp into single-channel mode, switch on the low-pass filter for clarity, and run a subwoofer with up to 190 watts RMS, perfect for a modest system. Speaker-level inputs allow you to add the GM-A3702 to a factory radio that doesn’t have preamp outputs. If your vehicle needs a sonic upgrade, this amp’s small footprint and reasonable price make it a great choice.
Product highlights:
- 2-channel car amplifier
- 60 watts RMS x 2 at 4 ohms (95 watts RMS x 2 at 2 ohms)
- 190 watts RMS x 1 in bridged mode (4-ohm stable in bridged mode)
- CEA-2006 compliant
- Class AB amp technology
- selectable low-pass filter (80 Hz, 12 dB per octave)
- preamp and speaker-level inputs
- fuse rating: 25A x 1
- 9-3/4″W x 2-3/8″H x 7-3/16″D
Specifications:
RCA Inputs | 2-CH |
---|---|
Amplifier Class | Class AB |
Hi-Res Certified | No |
Bridgeable | Yes |
Warranty | 1 Year |
Speaker Level Input | Yes |
Fuse Rating | 25A x 1 |
Bass Boost Remote | No |
Automatic Signal Sensing and Turn-On | Yes |
Hi-Volt Input Level Control | 0.3V to 6.5V (RCA in), 3.0V to 26V (SP in) |
Terminal Type | Screw |
Load Impedance Allowance (Ohms) | 2 to 4 |
Protection Control System | Yes |
Dimensions | 246(W) X 60(H) X 180(D) mm |
POWER | |
Continuous Power (RMS) Output @ 1Ω | N/A |
Continuous Power (RMS) Output @ 2Ω | 95W x 2 |
Continuous Power (RMS) Output @ 4Ω | 60W x 2 |
Continuous Power (RMS) Output – Bridged @ 4Ω | 190W x 1 |
AUDIO ADJUSTMENTS | |
Low-Pass Crossover Frequency | 80 Hz |
Low-Pass Slope (dB/octave) | -12db/oct (A/B CH) |
High-Pass Crossover Frequency | N/A |
Bass Boost Frequency | 50 Hz |
Bass Boost Level | 0/6/12dB |
AUDIO SPECIFICATIONS | |
Frequency Response | 10Hz ~ 70kHz |
Total Harmonic Distortion (THD) | <0.05 % |
Signal-to-Noise (SN) Ratio | >95 dB |
