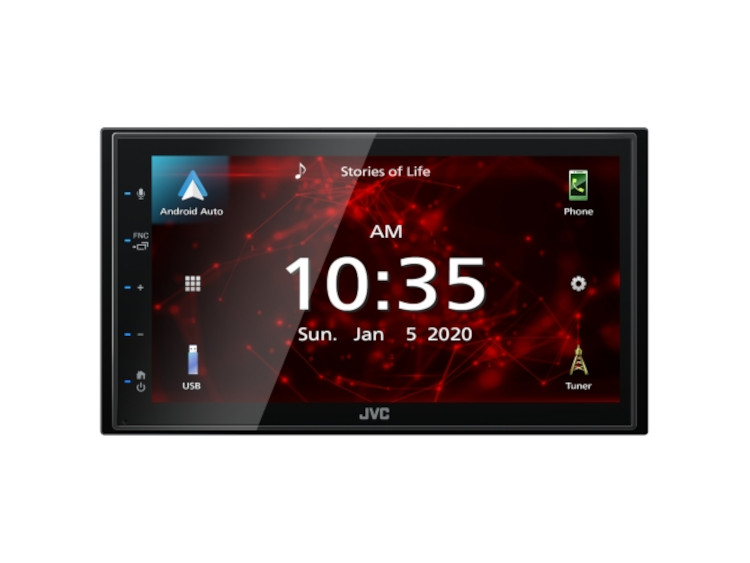

JVC KW-M560BT

The JVC KW-M560BT is a double DIN multimedia receiver with a 6.8″ customisable touch screen and a rear USB 1.5A with a standard port for charging your smartphone while streaming music. It is compatible with Android mirror, allowing in-dash control of select apps. The receiver also features Android Auto and Apple CarPlay via USB, Bluetooth for hands-free calling and audio streaming, as well as Android music playback via Bluetooth.

• Apple CarPlay / Android Auto (Wired)
• USB Mirroring for Android
• Bluetooth Automatic Pairing
• 6.8″ Capacitive Touchscreen
• 1.5A USB charging
• Rear View Camera Ready
• Gesture Touch Control
• Direct OEM Steering Remote
• Shallow Chasis for Easy Installation

Apple CarPlay™ – Connect via USB
A smarter, safer and more fun way to use your iPhone in the car. Apple CarPlay gives iPhone users an intuitive way to make calls, use Maps, and listen to music with just a word or a touch. With the latest iOS version (iOS 13.0 and higher), 3rd party navigation apps like Google Maps™ and Waze™ are supported.

Android Auto™ – Connect via USB
Android Auto was designed with safety in mind. With a simple and intuitive interface and powerful voice actions, it’s designed to minimize distraction so that you can stay focused on the road.

Mirroring for Android Phone – Connect via USB
By installing the “Mirroring OA for JVC” app, your Android phone is seamlessly displayed on the receiver’s screen via USB. You can enjoy a variety of apps such as Waze, YouTube, and Instagram. Touch control is possible from both screen and smartphone.

Shallow Chassis
The reduced depth of the chassis contributes to a weight reduction and facilitates easier installation.

Rear View Camera Ready
The Rear View Camera input allows you to connect an optional rear view camera (sold separately).
Rear view cameras allow you to safely back up your vehicle, monitor towing, and more.

Direct OEM Steering Remote Function
No need for a third-party adapter for most Japanese/Korean cars.

Monitor

• Screen Size 6.8″W VGA Screen
• Touch Panel Capacitive
• Monitor Touch Control Yes
• Customizable GUI Yes
• Key Illumination Color Blue
• Dimmer Yes
• Multilingual Display Yes

Media Playback

• MP3 Compatible with Tag USB
• WMA Compatible with Tag USB
• WAV Compatible with Tag USB
• AAC Compatible with Tag USB
• FLAC Compatible with Tag USB
• H.264 Compatible USB
• WMV Compatible USB
• MPEG 1/2 Compatible USB
• MPEG 4 Compatible USB
• AVI/MKV Compatible USB

Bluetooth Control

• Built-in Bluetooth Yes (Wired-Mic included)
• Hands Free Call Yes (HFP1.6 Wideband Speech)
• Audio Streaming & Control (A2DP, AVRCP) Yes
• Supported Audio Formats AAC / SBC
• Voice Dialing (voice recognition compatible mobile phone required) Yes
• Phone Book Access Profile (PBAP) Yes
• Alphabetical Search for Phone Book Yes
• Auto Pairing for iPhone/Android Yes (Android only)

Android Control

• Android Auto Yes (via USB)
• Mirroring for Android Yes (via USB) *Need mirroring App
• Android Music Playback Yes (via Bluetooth(R))

iPod/iPhone Control

• CarPlay Yes (via USB)

USB

• USB Port x 1 (High Speed)
• Position Rear
• USB Power Supply Yes (1.5A High Current Charging)

Radio Tuner

• Radio Data System Yes
• Preset Stations 20 (FM:15ch, AM:5ch)
• Auto Memory Entry Yes
• FM Frequency Range 87.9 – 108.0MHz
• AM Frequency Range 531-1,611kHz

Audio

• Maximum Power Output (Front & Rear) 50Wx4
• Full Bandwidth Power (Front & Rear) 22W x 4 (Full Bandwidth Power, at less than 1% THD)
• EQ Yes (13-Band Graphic EQ) / Preset EQ Yes (7Preset + 3user) / Bass Boost Yes
• High-Pass Filter/Low-Pass Filter Yes/Yes
• Time Alignment Yes

Inputs and Outputs

• AV Input mini jack
• Video Out RCA
• Rear view camera Input Yes
• Line Output Terminals 2 Preouts (Terminal) + Sub WF (Cable)
• Pre-output Level/Impedance 2.0V / 10k ohms
• Subwoofer Output with Level/Frequency Control Yes

General

• Back Up Memory Yes
• Steering Remote Control Ready Yes
• ISO Connector Yes

Dimensions (W x H x D)

• Installation Size 7″ x 3-15/16″ x 2-15/16″ (178 x 100 x 75 mm)
• Weight 2.8 lbs. (1.3kg) Including Sleeve and Trim plate
• Unit weight in individual package 1.8kg
