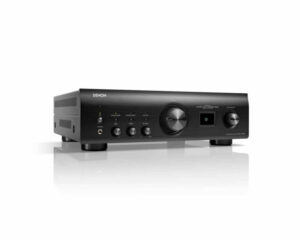

DENON PMA-1700NE – Integrated Amplifier

The Denon PMA-1700NE Integrated Amplifier features advanced ultra-high current single push-pull circuit power, Advanced AL32 Processing, and MM/MC phono equalizer, the Denon PMA-1700NE integrated amplifier delivers extraordinary sound quality with precise detail

Features

• Powerful sound from an integrated amplifier – Engineered with premium Denon technologies, this amplifier drives two channels at 140W.
• Faithful audio reproduction – Advanced AL32 Processing Plus delivers the richly detailed sound the artist intended.
• Build integrity with selected components – With more than 110 years of audio excellence, Denon products are built to last.

High-power 140W integrated amplifier

Drive your loudspeakers with 140 Watts of power- per-channel into 4 Ohms. This integrated amplifier offers compatibility with the widest range of 6 speaker types and impedances for operational stability.

Advanced AL32 Processing Plus
Advanced AL32 Processing Plus supports high-resolution 384 kHz/32-bit audio sources. The algorithms restore information that was lost during the digital recording to ensure detailed playback.

USB-DAC
To accurately synchronize digital circuits, the PMA- 1700NE provides USB-DAC functions that support high resolution up to 11.2-MHz DSD and 384- kHz/32-bit PCM input signals. Crafted with exceptional quality, the DAC suppresses jitter and ensures optimal precision in D/A conversion.

High-precision electrical controls
The Denon PMA-1700NE Integrated Amplifier embraces electrical volume, balance, and tone controls while preserving the analog feeling of operation. The unique mechanism offers smooth, linear control.

Specifications

General

Unit (W x D x H)	434 x 410 x 135mm 17.1 x 16.1 x 5.3in
Cabinet Size (W x D x H)	434 x 374 x 135mm 17.1 x 14.7 x 5.3in
Net weight	17.6kg 38.8lb
Packaging Dimensions (W x D x H)	548 x 520 x 249mm 21.6 x 20.5 x 9.8in
Packaging gross weight	20.4kg 45lb
Carton Color	2 Color
Cushion / Packing	4 Separate / Sheet
Panel Color	SP / BK
Front (Center) Panel	Aluminum
Side cover	SECC with 4 straight emboss
Side screw	SP: Nickel / BK: Black
Rear Panel	SECC t1.0mm
Chassis Material	SECC t1.2mm
Bottom Layer	Single
Volume Knob	Aluminum
Input Selector	Aluminum
Bass/Treble/Balance/ Phono Sel knobs	Aluminum
Power button	Aluminum
Other knob/button (LOUDNESS, SOURCE DIRECT etc)	Mold (Source Direct,Analog Mode,MM/MC)
Foot	ABS resin with rigid rib w/Hot stamp (H : 20mm)
Heatsink for Power Amplifier	Extruded Aluminum

Specifications

Rated Output Power	70W + 70W (8ohm,20Hz-20kHz,THD0.07%) 140W + 140W (4ohm, 1kHz, THD0.7%)
Speaker Impedance	A or B : 4 ~ 16ohm A + B : 8 ~ 16ohm
Frequency Response	5Hz – 100kHz (0~ -3dB)
Total Harmonic Distortion	0.01 % (Rated output: –3 dB), 8 ohm/ohms, 1 kHz
Dumping Factor	100 and over
Input Sensitivity: Phono input	MM: 2.5 mV / 47 kohm MC: 200
RIAA Deviation	20 Hz – 20 kHz ±0.5 dB (MM/MC)
Phono Maximum Input	MM : 130mV / 1kHz MC : 10mV / 1kHz
Input Sensitivity: CD/LINE/RECORDER	125 mV / 19 kohm
Input Sensitivity: Power Amp input	0.85V / 47kohm (EXT. PRE)
Signal to Noise Ratio	PHONO (MM): (89dB) PHONO (MC): (74dB) CD: (107dB)
Tone Control	BASS : 100Hz ±8dB TREBLE : 10kHz ±8dB
Power Consumption	295W
at Standby	0.2W TV autoplay off 0.4W TV autoplay on

Audio Feature

Power Amplifier Circuit	New UHC-MOS Single Push Pull (7)
Power Trans	Dual El Core
Pre Amplifier Circuit	Variable Gain Preamplifier (OP AMP)
Volume	Electric (MUSES 72323)
Bass / Treble / Mid / Balance Control	Yes / Yes / No / Yes
Type of Tone Control	Electric Controlled by Potentiometer
Headphone Circuit	Use Poweramplifier
Source Direct	Yes
Analog Amp Mode	Yes (button on front panel)
Other	70
DAC Circuit	PCM1795
Digital Filter	Fixed
Digital Processing	Advanced AL32 Processing Plus
DAC Master Clock Design (Not Support Network Playback)	Yes
Asyncronous mode (for USB-B input)	yes
Isolator (for USB-B input)	Yes Full Isolation

Connectivity

Phono Input	Yes (MM / MC) *default=MM
Analog Input (include Phono) / REC Out (RCA)	4/1 (PHONO / CD / NETWORK ,AUX/ RECORDER)
Optical input / output (Maximum Support)	2 / 0 (192kHz/24bit)
Coaxial input / output (Maximum Support)	1 / 0 (192kHz/24bit)
Ext. Pre Input (Power Amp Direct)	Yes(Ext.Pre)
2 sets of Speaker Output	Yes (Bi-wiring)
Speaker Terminal	Gold Plated
Headphone Output	1 (Turn off the speaker when inserting headphone)
Remote Control Bus Terminal	Yes (mini)
AC Inlet	Yes
Wi-Fi	No
HEOS	No
USB B (USB DAC)	1 (Rear)
Module or Main Device	New XMOS (XU210-256-TQ128 )
PCM Sample Rate	~384kHz/32bit
DSD Audio Streaming (DoP)	~11.2MHz
Roon Certificaton	Yes(Roon Tested) TBD

Control

Remote Controller	System Remote (w/CD Player Control)
Unit control (Button)	Push Switch: 1 POWER Tact Switch : 3 ANALOG MODE, SOURCE DIRECT, MM / MC
Unit control (Knob)	5 VOLUME, INPUT SELECTOR, BASS, TREBLE, BALANCE
LED	POWER: 1 Red / Green ANALOG MODE: 1 Green SOURCE DIRECT: 1 Green MM / MC :1 Green
Front Panel Display	Yes (OLED 128 x 100 dot) MXS4036-A
Display Language	Alphabetical
Dimmer for Front Display	Bright / Dim / Dark / Off
Control with App via Network Player (Use Remote Control Bus)	Yes
TV Auto-play (Opt/Coax digital-in detecter)	Yes
Last Function Memory	Yes
Auto Standby Mode	Yes
Owner’s Manual	Web Manual E2: (English, German, French, Italian, Dutch, Spanish, Swedish, Polish, Russian) E3: (English, French, Spanish) E1C: (Simplified Chinese) JP: (Japanese) Paper JP: (Japanese)
Quick Start Guide	Paper E2: (English, German, French, Italian, Dutch, Spanish, Swedish, Polish, Russian) E3: (English, French, Spanish) E1C: (Simplified Chinese) JP: (Japanese)
Remote Controller	Yes
Battery	Yes (AAA x2)
Power Cord	Yes
